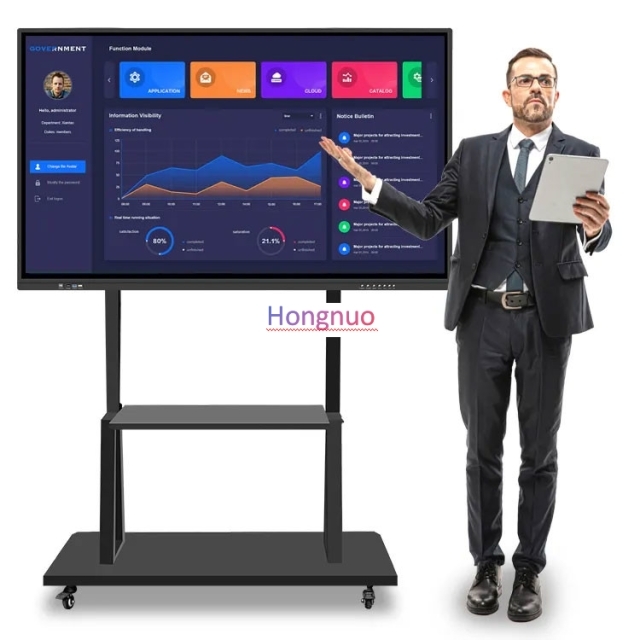

55 inch i3 Ram4GB Rom128GB Smart Interactive Whiteboard For Meeting and Eductions
HONGNUO Touch Screen Interactive Whiteboard Video Meeting Conference Machine
Destription
The smart digital whiteboard can be instalLCD between two piece of blackboard on the teacher's platform wall, it can be hidden by blackboard when no need to use, and just use it after pushing aside blackboard.
Also we have a movable stand on option, it also can be instalLCD on he stand and just put in one place in the class room.

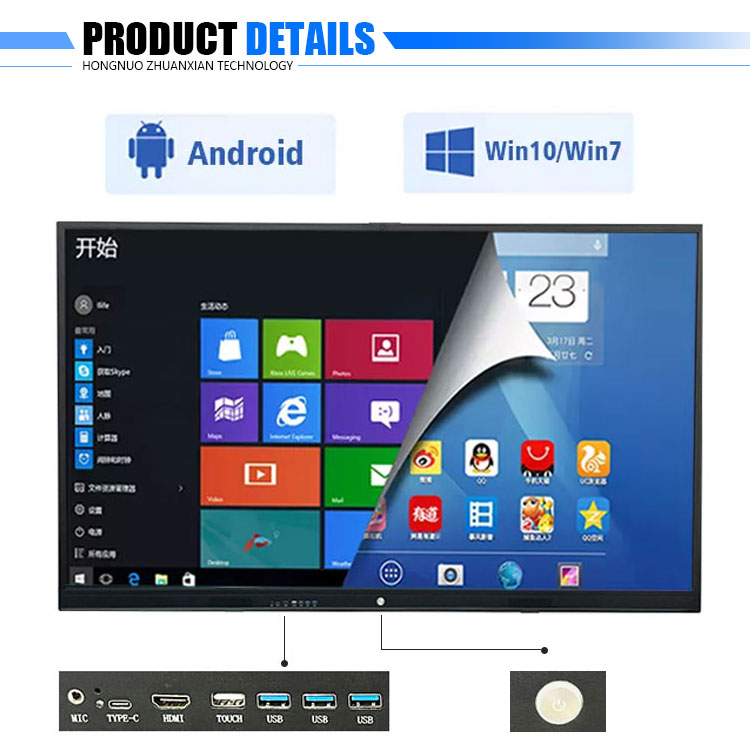

In order to adapt to different software all over the world, smart touch screen whiteboard usually has two systems: Windows and Android, so users can install many educational software as they want.
Main Feature
Hongnuo teaching multimedia all-in-one machine with stylish, simple and streamlined appearance;
Set a variety of expansion of external devices, easy to operate, heat dissipation function, the
Sound system full, practical, maintenance-free and convenient;
Provide you with a variety of specifications display screen touch technology, to meet the information query needs of various places.
Using high-quality infrared touch panel, ultra-high light transmission rate, strong resistance to violence, scratch and wear resistance, dustproof and waterproof.
High touch sensitivity, fast speed, no drift phenomenon
Application
Company Meeting, Training Course, Family Entertainment, Work Discussion, Teaching Infants, Video Conference, Commercial Display, Multi-Person Conference, Product Description, Show Demonstration, Medical Consultation, Production Projection, Media Broadcast, Corporate Presentation, Exhibition Center, Speech, Etc.
Strength factory
When sourcing in China, it is very important to make the right choices. Choosing a factory is the first step in obtaining the right products for your projects. Many companies in China will want you to believe that they are true factories. In fact, they are mainly trading companies with associations to domestic manufacturers. The results: These types of organizations will not have a complete control over the quality of your products. They are price driven only shops.
Custom Designs
HONGNUO is an OEM / ODM factory, customizing your products to tailor your needs is our strength. Our team of designers , software engineers and structure engineers will make sure to render your imagination into actual products!
factory production + software development + ID design + structural design, etc. These teams belong to our own.
I. Product Specification
Touch Control System | ||||||
Touch recognition method | Built-in infrared optical touch recognition (supports 20-point touch simultaneously) | |||||
Effective recognition range | Finger, stylus or other non-transparent objects with a diameter of not less than 3mm (8mm for multiple points) | |||||
Positioning accuracy | ±2mm (more than 95% of the touch area) | |||||
Response time | Maximum 8ms (cursor speed approx. 120 points/s) | |||||
Touch resolution | H: 32767 V: 32767 | |||||
Touch life | ≥ 80,000 hours | |||||
Android System Hardware Configuration | ||||||
Main chip model | MSD8386 | |||||
CPU | A53*2+A73*2 quad-core 1.5GHz | |||||
GPU | G51 MP | |||||
RAM | 4GB DDR3 | |||||
ROM | 32 GB Standard | |||||
Version | Android 8.0 | |||||
External Expandable Storage | SD/TF Card interface supports up to 128GB, USB2.0 interface supports up to 1TB | |||||

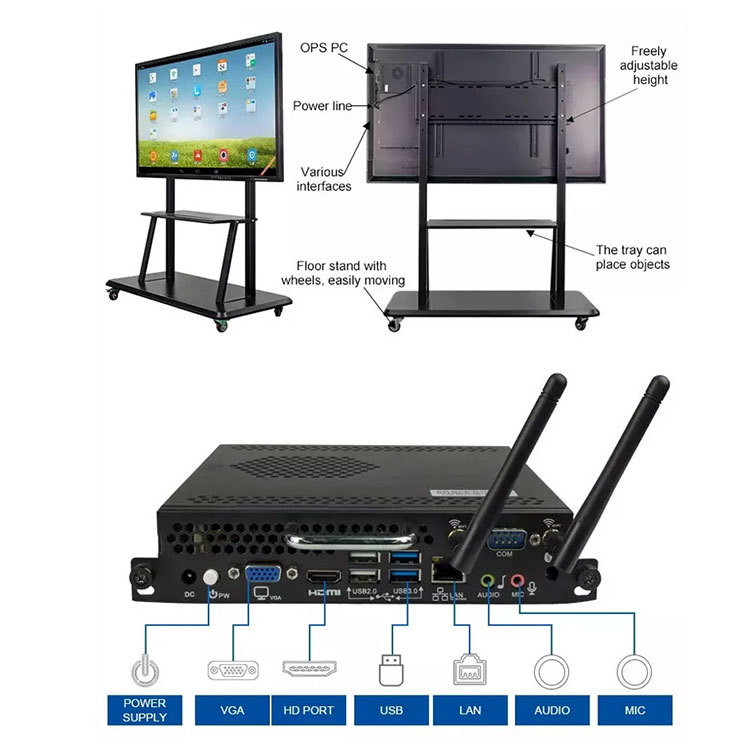

OPS | ||||||
CPU | Inter Core I3 I5 | |||||
Memory | DDR3 4G 1333MHZ | |||||
Hard Drive | 128G SSD Hard Drive | |||||
Power | 18V6.5A | |||||
Interfaces | HDMI*1,VGA*1,USB2.0*2,USB3.0*2,RJ45*1, PC AUDIO*1, HDMI*1, VGA | |||||
Graphics card | HD VIDEO (CPU is not used, the performance of the graphics card is different) | |||||

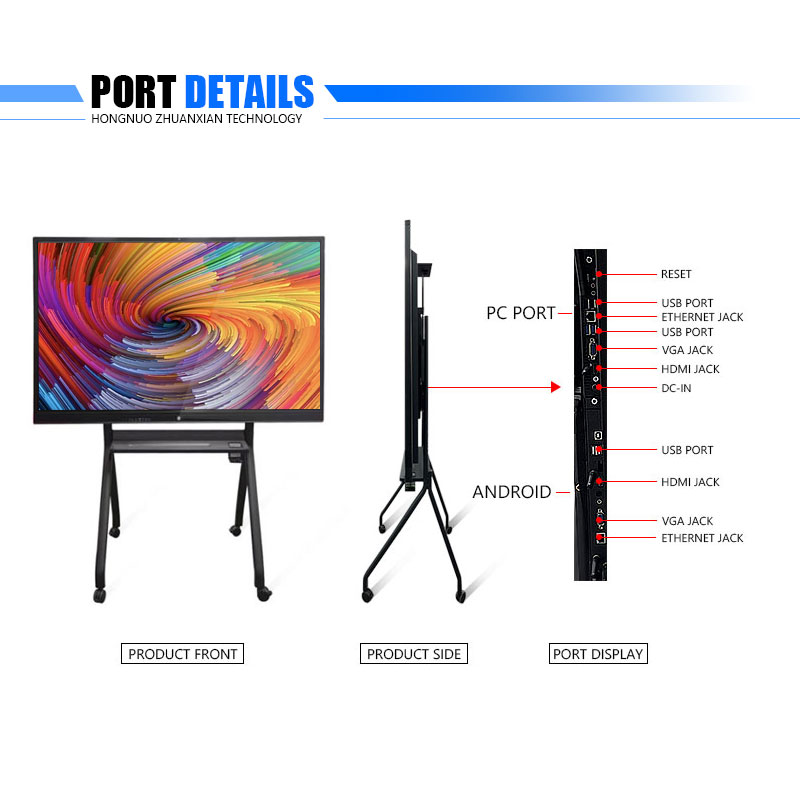

Motherboard System Input/Output Interface Configuration | ||||||
USB input | 4*Type-A USB2.0 x4, 1*front follow-through, 1* USB3.0 | |||||
USB output | Type-B for external PC / HDMI touch out | |||||
Audio input | 1*VGA audio input (standard ø3.5mm socket) 1 Digital COAX (Coaxial Lotus port) | |||||
Audio output | 1* analogue AV stereo (mini jack) 1*EARPHONE 1*SPDIF OUT 1*Group YPbPr/YCbCr+Audio 1*Display Port 4K | |||||
SD Card input | 1*TF standard socket | |||||
TVRF input | 1*75Ω IEC standard F type | |||||
Network input | 1*RJ45 standard jack (Ethernet wired input) 2*external Wi-Fi antenna interfaces | |||||
RS232 UART input | 2*(built-in 4Pin socket, 1*standard female connector) | |||||
Video input | 1 VGA (D-SUB 15Pin socket) 3 HDMI (including 1*front) | |||||
USB Multimedia Playback Format Support under Android Environment | ||||||
Video decoder type | MPEG-1andMPEG-2 uptoM: 1080p @60fps(1920x1080) MPEG-4 upto ASP level 5: 1080p @60fps(1920x1080) H.263: 576p @60fps (720x576) H.264: 10bit up to HP level 5.1; 2160P @60fps (4096x2304) VC-1: up to AP level 3; 1080p @30fps(1920x1080) VP8: 1080p @60fps (1920x1080) VP9: 2160P @30fps/4K 60Hz HEVC/H.265: 2K/4K 10bit @60fps MVC: 1080P @60fps (1920x1080) | |||||
Image format | JPEG、BMP、PNG | |||||
Audio formats | WMA、MP3、M4A (The formats that are explicitly not supported are: SONY ATRAC3、Dobly HD) | |||||
Video format | RM、MPEG2、MPEG4、H.265、RMVB、MOV、MJPEG、VC1、FLV (The formats that are explicitly not supported are: MSVS/CRAM、 MP42、GMC、IV32、RLE、CVID、RV20 ,H.264@3840*2160) | |||||
The image processing | Up to 2160P 60Hz Multiple video decoding formats, including 1080p 120Hz Supports hard decoding to play 4K H.265 videos, and supports H.264 and H.263 formats for downward compatibility | |||||
Electrical Performance of Whole Machine | ||||||
Power input | AC 220-240V 50/60Hz | |||||
Power consumption of the whole machine (standard mode excluding computer) | 55inch-55-AH(S):165W 65inch-65AH(S):190W 75inch-75-AH(S):230W 86 inch-86-AH(S):270W | |||||
System standby power consumption | ≦0.5W（Standard mode does not include a PC and does not have an external USB or hard disk device） | |||||
Speaker power | Stereo mixed dual-channel class-D power amplifier output, rated power: 10W 2x10W（L+R / 8Ω） | |||||
Operating Environment Requirements | ||||||
Working temperature | 5℃～45℃ | |||||
Working humidity | 20% ~ 80%, no condensation | |||||
Storage temperature | -15 ° C to 60 ° C, 5 ° C to 45 ° C is recommended | |||||
Dimensions and Performance Parameters | ||||||
Screen size | 55 inch | 65 inch | 75 inch | 86 inch | ||
Backlight type | ELED | |||||

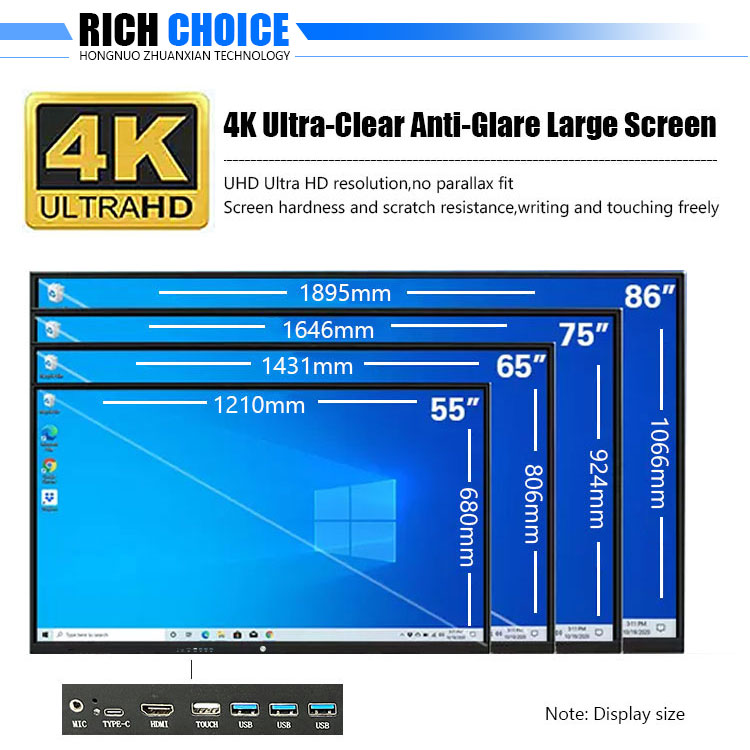

Display area(mm) | 1210 x 680 | 1431x806 | 1646x924 | 1895x1066 | ||
Dimension(mm) | 1271.4x784.6x65.8 | 1488.5x905.5x65.8 | 1710.8x1031.9x65.3 | 1957.9x1172x65.3 | ||
L* H * W(mm) | 1390x930 x170 | 1620x1055x200 | 1860x1180x205 | 2105x1315 x205 | ||
N.W. (kg) | 34.9 | 40.6 | 54.3 | 67.9 | ||
G.W. (kg) | 42.8 | 50.95 | 69.4 | 89.2 | ||
Physical resolution | 4K（3840 x 2160） | |||||
Peak brightness | 350cd/㎡ | |||||
Accessories | ||||||
Wifi antenna | 4 | |||||
Writing pen | 1 | |||||
Remote control | 1 | |||||
Warranty card | 1 | |||||
1.8m power cord | 1 | |||||
Wall bracket hanger (screws included) | 1 | |||||
